Operating Frequency

LF (125KHz), HF (13.56MHz), UHF (860~960MHz),   LF+UHF, HF+UHF

Chip IC

EM4200, TK4100, T5577, S50, S70, Ultralight, Ntag216,   Alien H3

Standard

ISO14443, ISO15693, ISO 18000

Material

PVC, PET, PETG, ABS

Dimension

310mm x 468mm, Max. size 520mm x420mm, A4 210mm   x297,

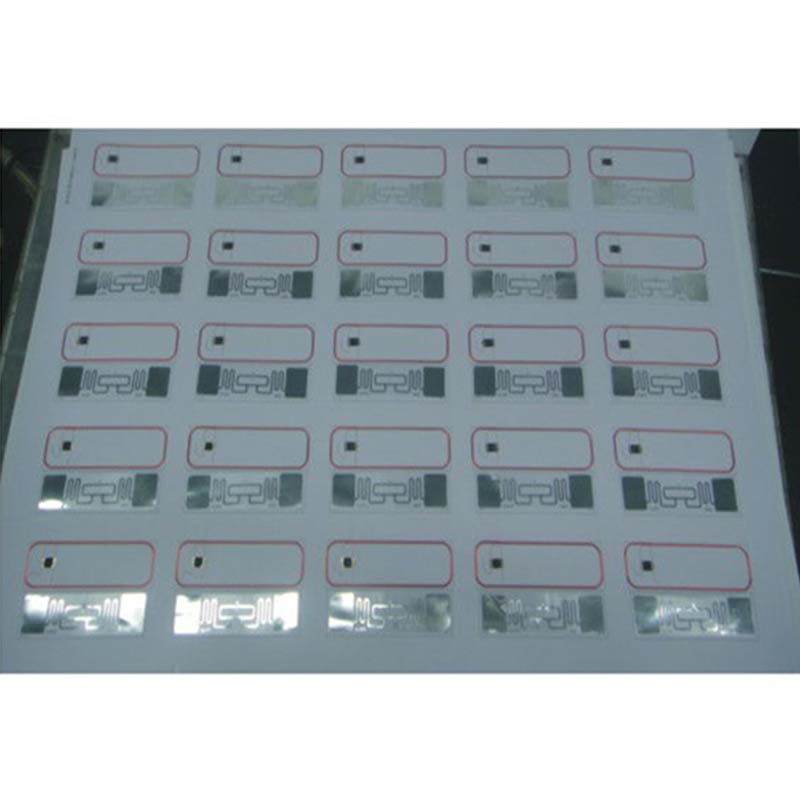

Layout for RFID Inlay

3x7, 5x5, 3x8, 4x8, 4x6, 2x5, 2x4, or any   Customization of CR80 card or any unit antenna size

RFID inlay Thickness

HF: normal 0.45mm,0.5mm, min.0.3mm

LF: normal ,0.6mm, Min. 0.5mm

UHF: 0.6mm, 0.5mm

Antenna

HF: air antenna, ultrasonic embedding or Aluminum   etching.

LF:  air antenna or ultrasonic embedding

UHF: AL Etching

RFID Inlay Read range

Depends on the reader and the chip

Working temperature

-25°C ~ +55°C

Store temperature

-25°C ~ +65°C
