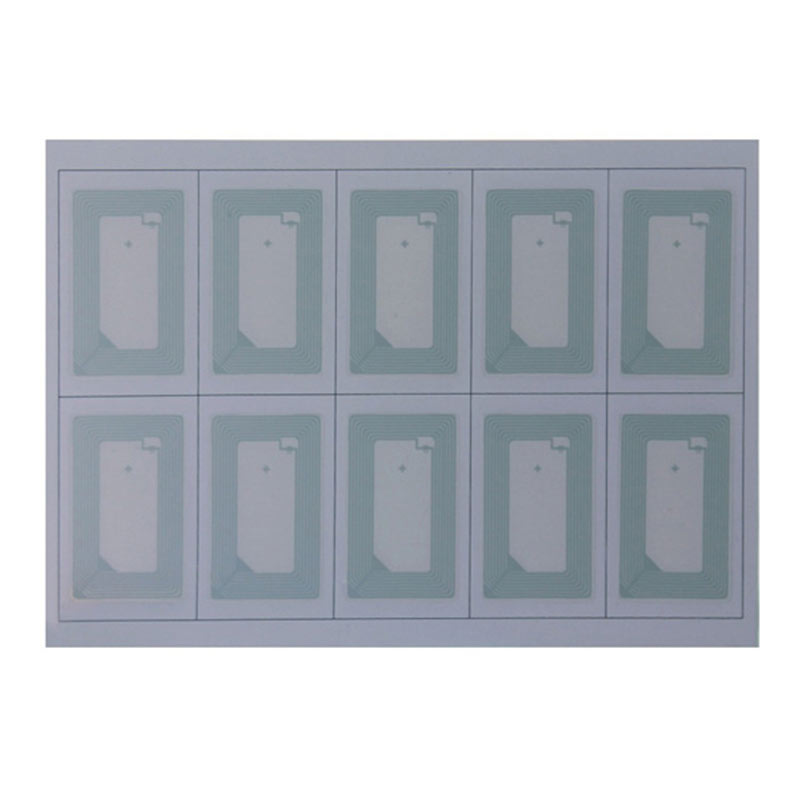

13.56MHz RFID Prelam

The RFID PVC Sheet Inlay is a semi-product for card making,

details specifications as follows:

Item

Specification

Operating Frequency

LF (125KHz), HF (13.56MHz),   UHF (860~960MHz), LF+UHF, HF+UHF

Chip IC

EM4200, TK4100, T5577,   S50, S70, Ultralight, Ntag216, Alien H3

Standard

ISO14443, ISO15693, ISO   18000

Material

PVC, PET, PETG, ABS

Dimension

310mm x 468mm, Max. size   520mm x420mm, A4 210mm x297,

Layout for RFID Inlay

3x7, 5x5,3x8,4x8,4x6,   2x5,2x4, or any Customization of CR80 card or any unit antenna size

RFID inlay Thickness

HF: normal 0.45mm,0.5mm,   min.0.3mm

LF: normal ,0.6mm, Min.   0.5mm

UHF: 0.6mm, 0.5mm

Antenna

HF: air antenna,   ultrasonic embedding or Aluminum etching.

LF:  air antenna or ultrasonic   embedding

UHF: AL Etching

RFID Inlay Read range

Depends on the reader and   the chip

Working temperature

-25°C ~ +55°C

Store temperature

-25°C ~ +65°C
